For precision bore alignment, the Easy-Laser XT950 assesses the relative positions of bore centres in engines, compressors, and gearboxes. It guides you through measurement, calculates horizontal and vertical deviations, and helps evaluate results against selected references and tolerances.

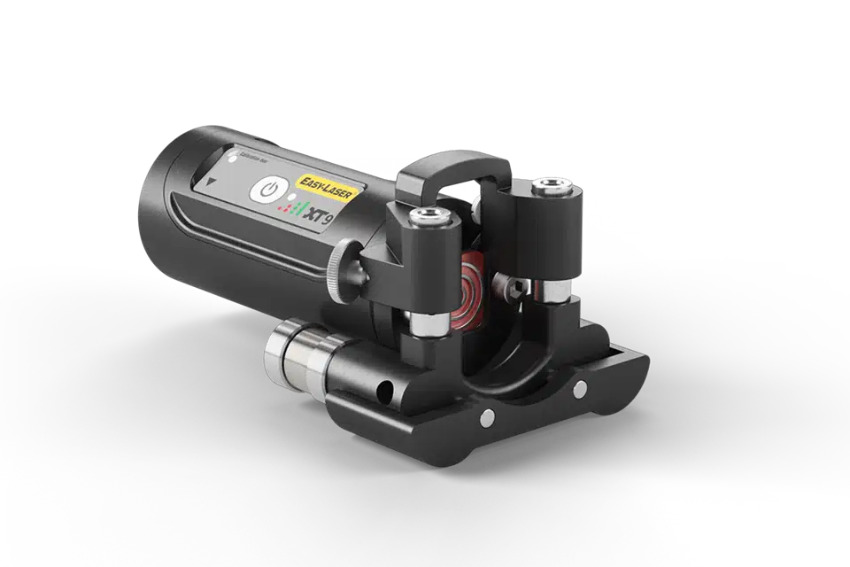

The Easy-Laser XT950 Laser Bore Alignment System measures the alignment of bore centre lines in engines, compressors, gearboxes and other cylindrical assemblies. It’s XT24 laser transmitter and XT9 detector enable users to measure how individual bores are positioned relative to one another, both horizontally and vertically.
The complete system measures bore diameters from 80 to 500 mm. It is designed for use in measuring the straightness of shafts, linear guides, and foundations.
Through the XT950, users can see how individual bores align along an assembly and use the results to guide inspection or adjustment. The system also makes it easier to document findings and share them with the wider team. Explore the following key benefits below.
Explore the key features such as the measurement tools, mounting options, and reporting functions built into the XT950 system. The system also supports bore diameters from 80 to 500 mm and can measure distances of up to 40 m.

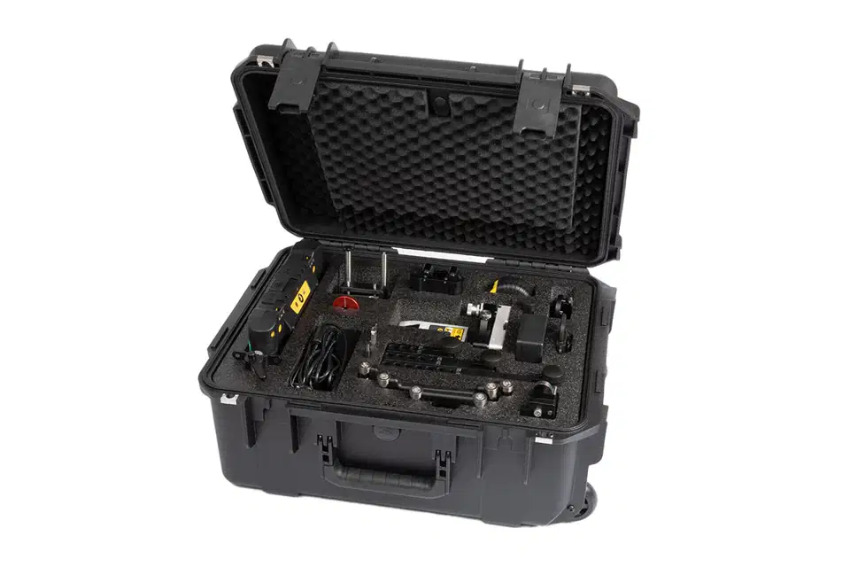

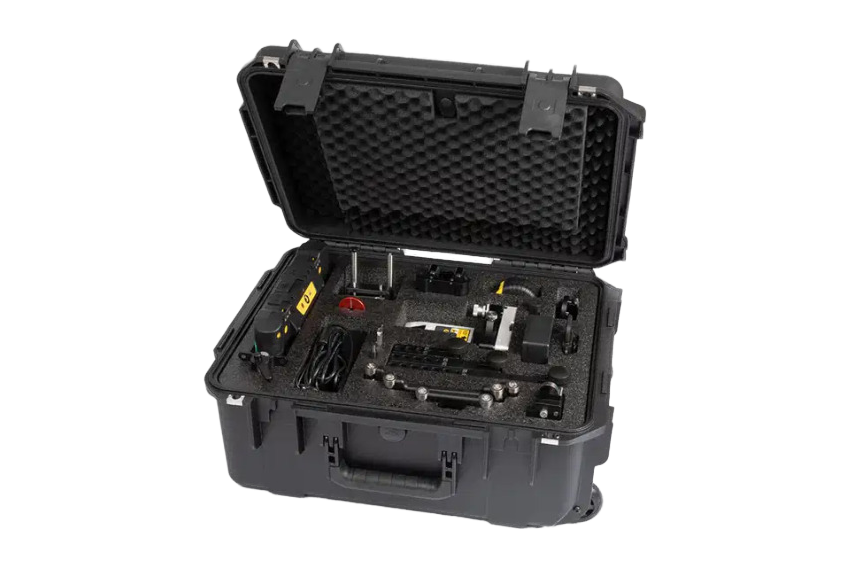

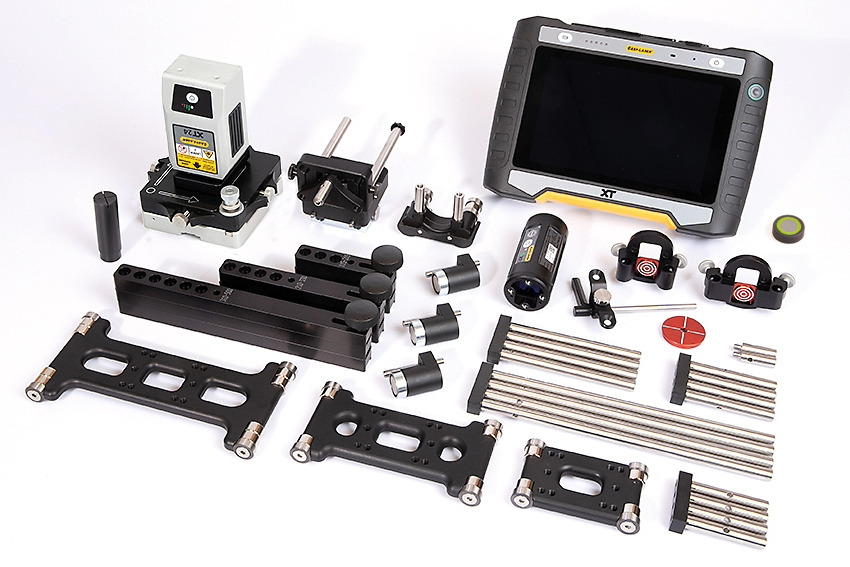

Complete XT950 System
Includes the XT24 laser transmitter, XT9 detector and a range of mounting components for bore alignment.
Bore Center Program
Guides the measurement process and calculates the relative horizontal and vertical positions of the bores.
Multipoint Measurement
Capture 3–50 points at each bore position and remeasure individual points when needed.
Flexible Result Analysis
Evaluate measurements using different best-fit calculations, reference points and tolerances.
Measurement Capability
Measures with a resolution of 0.001 mm over distances of up to 40 m.
Versatile Mounting

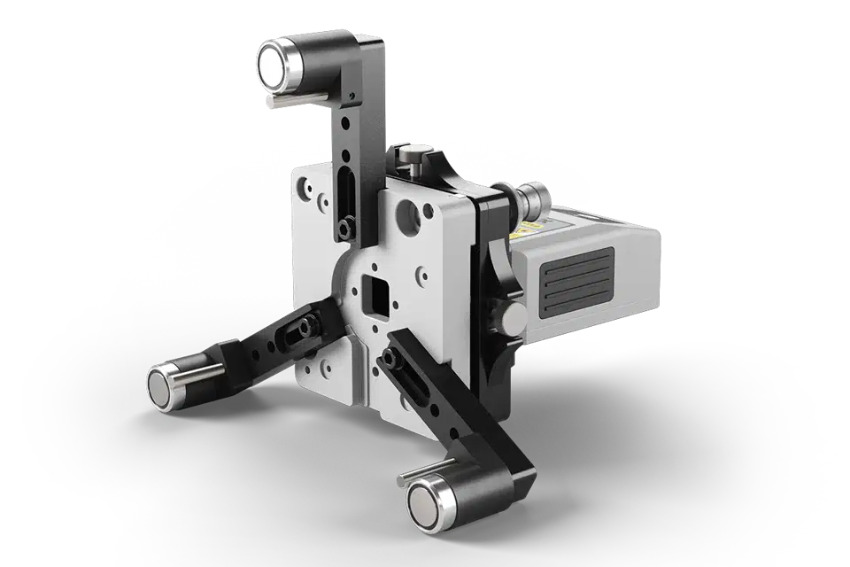

Brackets, rods, an offset hub and magnetic mounting components support different measurement setups.
XT Alignment App
Run the measurement program on a compatible iOS or Android device, or an Easy-Laser XT12 tablet. The XT12 is an optional display unit.

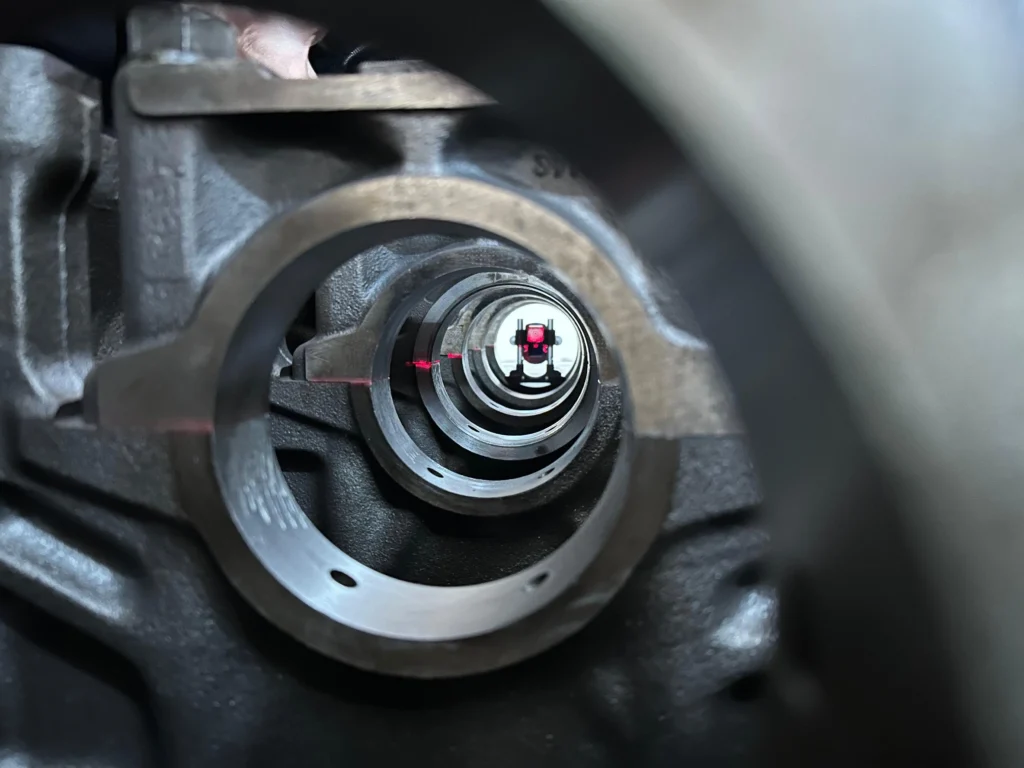

The XT950 utilises a laser beam as a measurement reference while the detector records positions along the bore line. The Bore Center program then calculates each bore’s relative horizontal and vertical position for evaluation. The following is a typical bore alignment process.

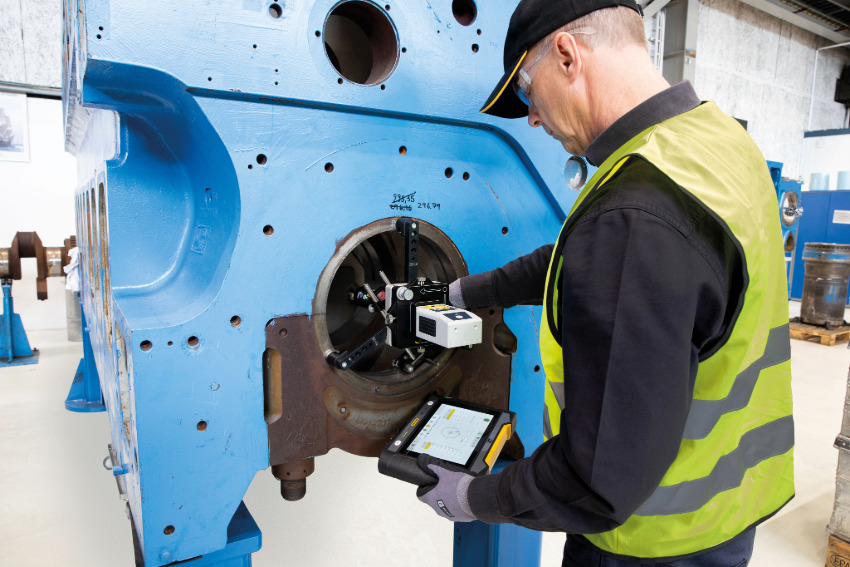

Position the XT24 using the mounting arrangement suited to the assembly.
Place the XT9 at a bore position and adjust the setup so the laser beam reaches the detector.
Follow the Bore Center program to record points at each position along the bore line.
The software calculates the bores’ relative horizontal and vertical positions. Select reference points, apply a best-fit calculation, or compare results with set tolerances.
Save the measurement and generate a PDF or Excel report.
The XT950 can help locate and quantify deviations when an alignment of a bore is uncertain. Its measurements give users a basis for deciding where further inspection or adjustment is needed. Here is a list of issues the system can help resolve.
Unclear bore centre alignment
Difficulty locating a deviation
Inconsistent assessment across a long assembly
Limited access to a complete bore
Lack of documented measurement results
Designed for performing bore alignment and straightness measurements. Explore the following applicable machinery and equipment.
Engines
Compressors
Gearboxes
Shafts
Linear Guides
Foundations
The XT950 system is designed for work that involve the manufacturing, installation or servicing of equipment with bore centre lines or bearing journals. Applications include engine, compressor service, and marine propulsion assemblies etc.
Marine
Engine Manufacturing and Overhaul
Compressor Manufacturing and Service
Gearbox Manufacturing and Repair
Industrial Field Services
The XT950 laser bore alignment system is developed by Easy-Laser. Vibtech Genesis Pte Ltd is the official Singapore distributor for Easy-Laser.
Complete the contact form below to arrange for a product consultation from a Vibtech Genesis representative.
Fill in your contact details below. A Vibtech Genesis representative will be in touch with you within 1 working day.

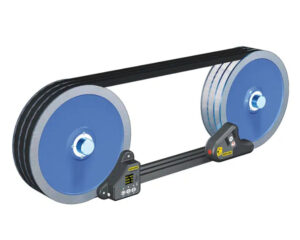

Align belt drives confidently using the Easy-Laser XT190 Laser Belt Alignment System. The system features live digital measurements and calculated corrections that help maintenance teams achieve alignment within prescribed tolerances, with documented results.
