The MCEMAX analyser assesses electric motors while running or shut down. It then uses the combined test history to support more informed maintenance decisions.
The MCEMAX is a portable electric motor analyser designed to assess motors while they are in operation or in shut down mode. It brings both approaches together in one instrument, giving maintenance teams a way to investigate motor condition and track changes over time.
The MCEMAX analyser is designed for testing electric motors and generators, with results managed through its integrated MCEGold software.
The MCEMAX electric motor analyser helps users make better-informed maintenance decisions with a clearer view of motor condition. It enables maintenance teams to investigate suspected problems, identify changes that need attention, and use test history to guide follow-up work. Explore the following key benefits.
Static and Dynamic Motor Testing
Provides tests for motors that are shut down and measurements for motors while they are running, including power and current signature tests.
Automatic Insulation Testing
Performs insulation resistance (IR), polarisation index (PI), dielectric absorption ratio (DAR) and step voltage tests.
Six-Channel Simultaneous Acquisition
Captures six channels of test data at the same time.
Electrical Measurements
Measures phase-to-phase resistance and inductance, ground capacitance, phase impedance and phase angle, among other parameters.
Operating and Performance Analysis
Includes current spectral analysis, three-phase inrush and start-up testing, torque analysis and efficiency analysis.
Integrated MCEGold Software
Maintains motor test history and displays red or yellow alerts for results outside its acceptance criteria.
Portable Test System

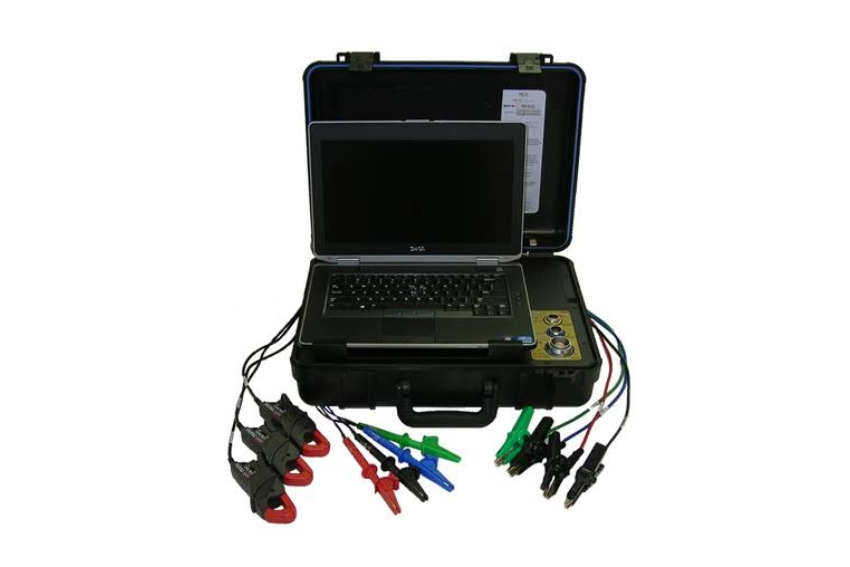

Combines an integrated laptop with a battery-powered instrument in a rugged carrying case.
The analyser utilises different tests depending on whether a motor is in shut down or running mode. The resulting measurements are reviewed in the MCEGold software to assess motor condition and compare results over time. Below is a typical working process of the MCEMAX.
Choose tests appropriate to the motor’s operating state. Static tests are performed when it is shut down; dynamic tests collect data while it is running.
Measure electrical parameters through static tests, or capture voltage and current data during operation for power quality, spectral and start-up analysis.

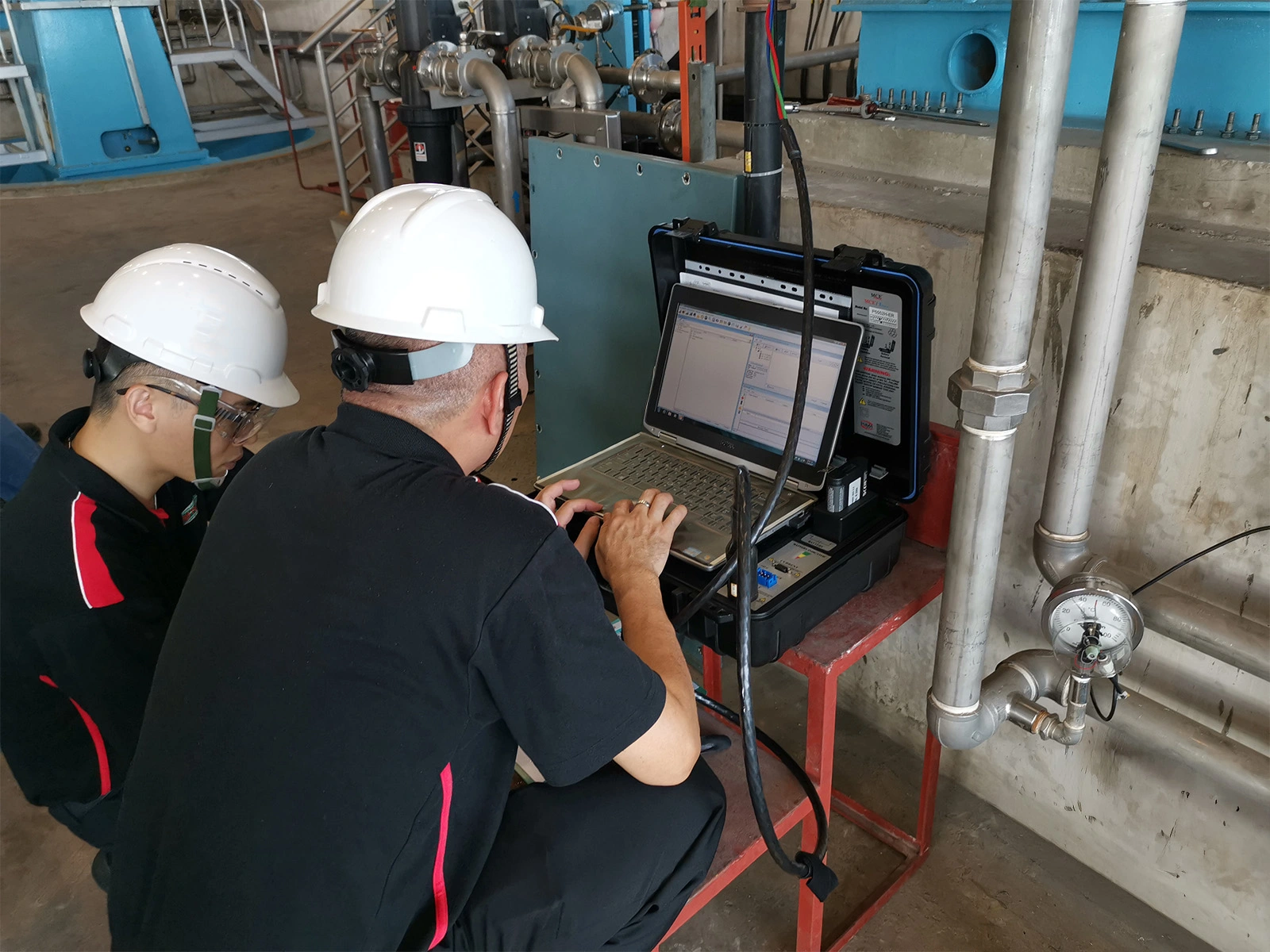

Examine the test data in MCEGold software. Red or yellow alerts identify results outside the software’s acceptance criteria for closer review.
Compare new readings with the motor’s stored test history to track changes in condition and identify findings that warrant investigation.
A motor problem does not always originate inside the motor. The MCEMAX’s Six Fault Zone approach divides a motor investigation into the following six places where an electrical or motor condition may originate. It starts with the power supplied to the motor, follows that power through the circuit, and then examines the motor’s insulation and internal components.

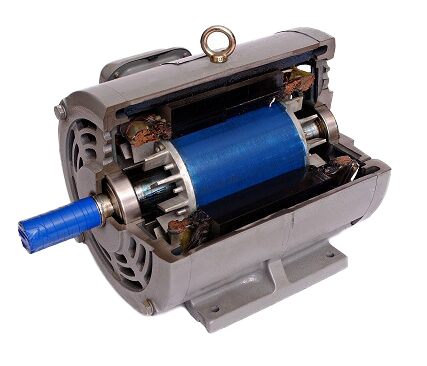

The MCEMAX supports static and dynamic testing of AC induction, synchronous, wound-rotor, and DC motors, as well as generators. This makes it applicable to a broad range of motor-driven assets.
Pumps, fans, compressors, conveyors and other motor-driven machinery.
Large industrial drives and other applications using synchronous machines.
Equipment fitted with wound-rotor motor systems.
Machinery powered by DC motor drives.
Electric generators requiring condition assessment.
Watch the video below to understand how the MCEMAX can help support electric motor reliability.
From utility and water infrastructure to manufacturing plants, pulp and paper mills, and data centres, the MCEMAX motor analyser helps maintenance teams assess equipment condition and plan investigations before developing faults disrupt operations. It supports motor condition monitoring across the following industries where electric motors and generators are essential to daily operations.
Power Generation and Utilities
Water and Wastewater
Petrochemical and Oil & Gas
Manufacturing
Pulp and Paper
Data Centres and Critical Facilities
The MCEMAX portable electric motor analyser is developed by PdMA Corporation. Vibtech Genesis Pte Ltd is the official Singapore distributor for PdMA.
