VibVue is a motion magnification software and high-speed camera system that make subtle machinery and structural vibrations visible and measurable. It enables engineers to diagnose vibration problems, identify root causes, and reduce troubleshooting time.
VibVue is a motion magnification software and high-speed camera system designed to visualise and analyse subtle vibration in operating machinery and structures. It processes recorded video at the pixel level, magnifying movements that are difficult or impossible to see with the naked eye and presenting them as clear, measurable motion.The system enables reliability engineers to examine vibration across multiple areas of a machine or structure without installing sensors at every measurement point.
VibVue supports faster investigation of machinery dynamics, structural movement and transient events, helping maintenance and reliability teams identify potential sources of vibration and make better-informed maintenance decisions.
The core benefit of the VibVue system is that it enables faster, easier, and more reliable diagnosis of vibration and structural dynamics, helping maintenance and reliability teams identify problems with greater confidence. It improves the entire troubleshooting process, thereby shortening the problem to resolution time, resulting in lower maintenance costs, and the reduction of machinery downtime.
VibVue works by combining high-speed video capture with motion magnification software to record, reveal, and measure movements. The entire diagnosis process begins by first recording an equipment under its normal operating conditions, and it continues through video processing, vibration analysis, and engineering interpretation.

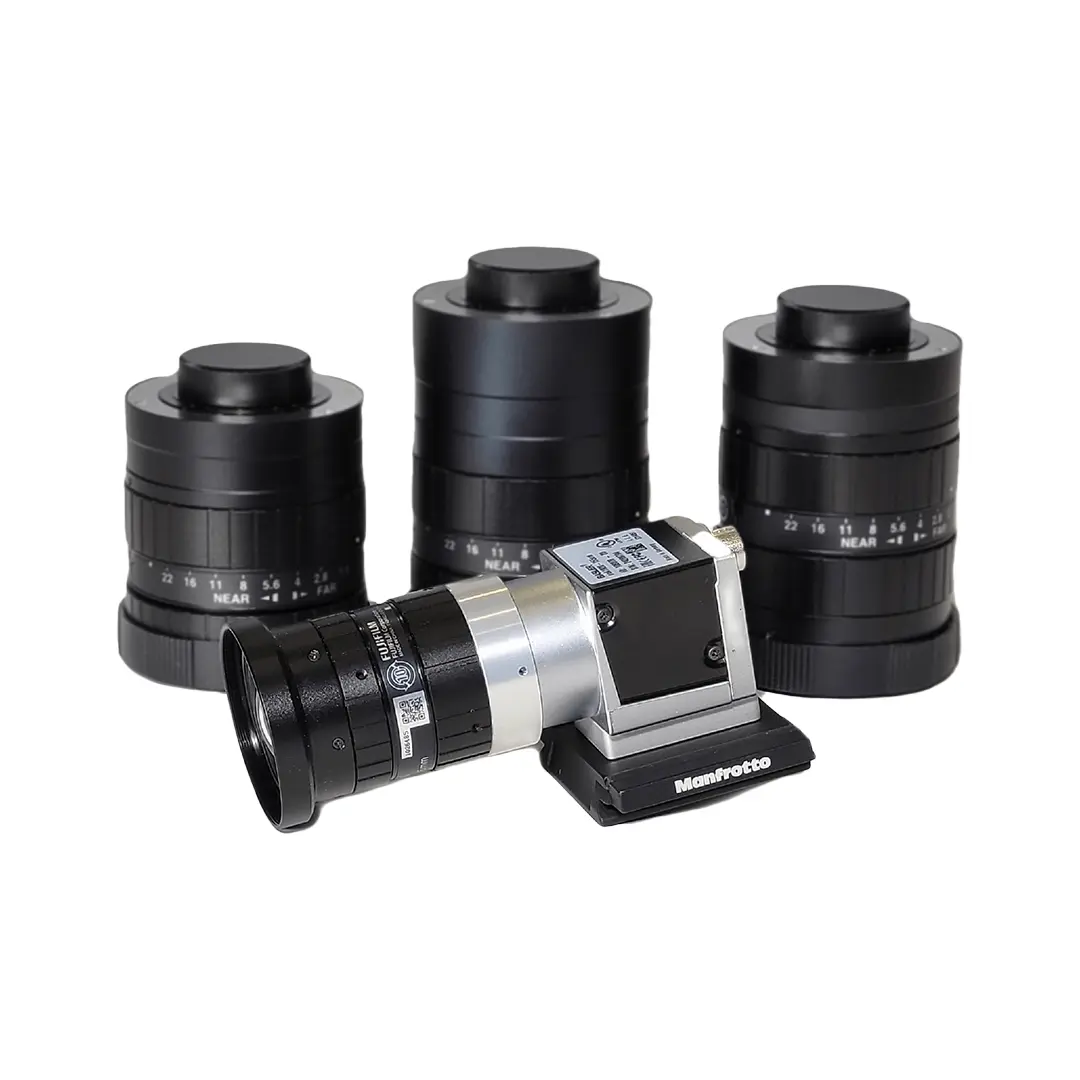

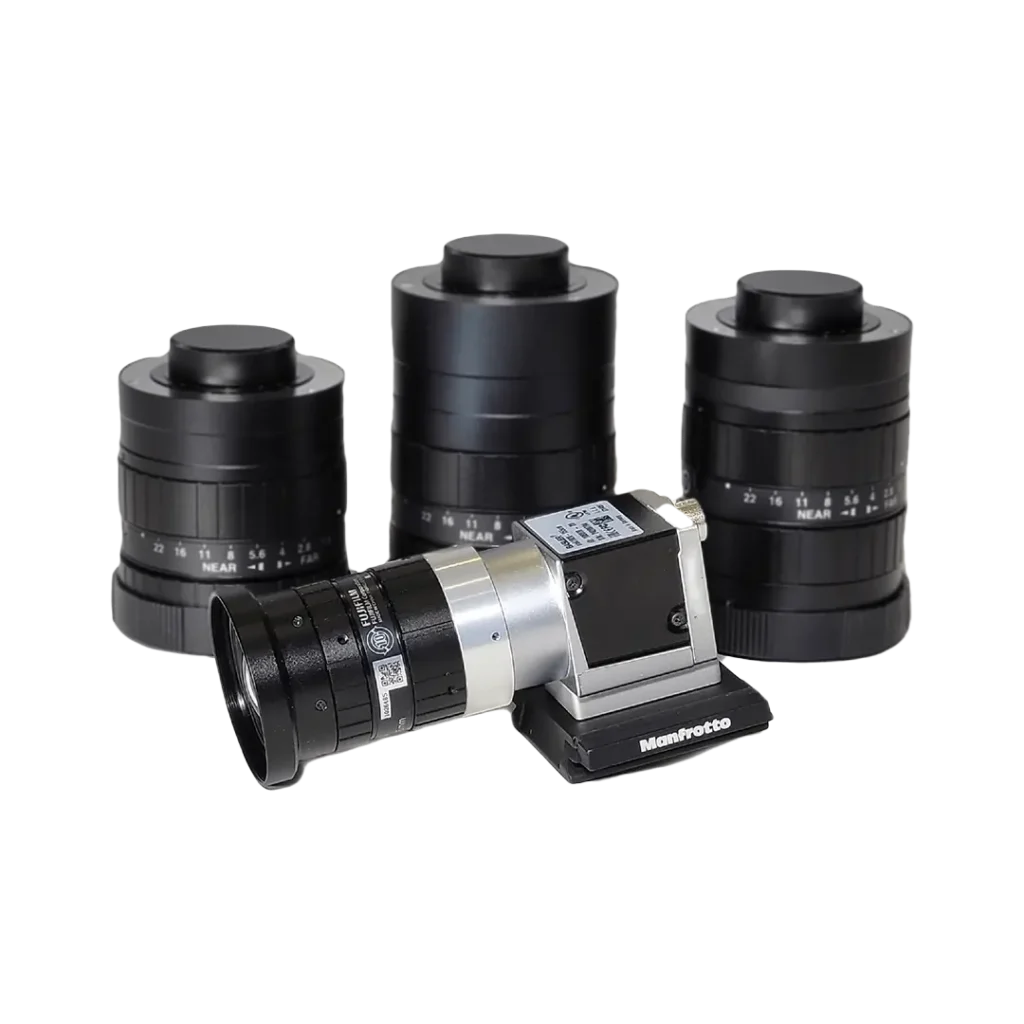

The high-speed camera records the machine or structure while it is operating. Correct camera positioning provides a clear view of the components being investigated.
VibVue analyses pixel-level movement within the recorded video. Users can select multiple regions of interest and examine vibration data such as frequency, displacement, velocity, acceleration, overall vibration and phase angle.
The VibVue software filters and magnifies selected movement by more than 1,000 times, making vibration patterns that are normally invisible to the naked eye clearly visible. Motion can be displayed in the frequency domain or time domain for transient events.
Engineers interpret the motion-magnified video and measurement data to investigate how machinery components and supporting structures are moving. This helps them identify possible vibration sources and determine where further investigation or corrective action may be required.

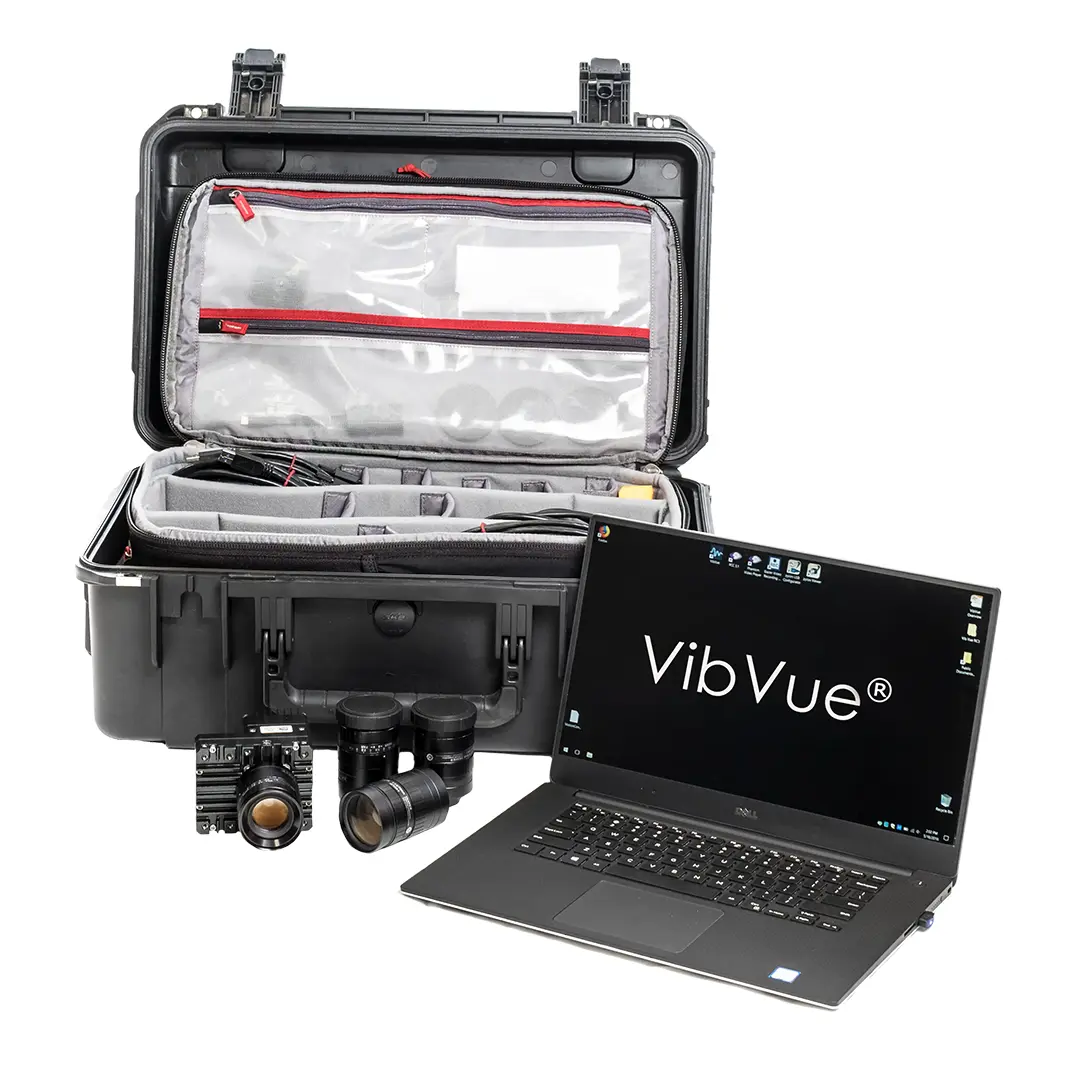

Combining high-speed video capture technology and advanced motion magnification software, VibVue system capabilities include pixel-level vibration analysis, quantitative measurement, frequency- and time-domain processing, and portable on-site operation.
Motion Magnification Above 1,000×
Slows down and magnifies subtle movement by more than 1,000 times, allowing small machinery and structural movements to be displayed in motion-magnified video.
Pixel-Level Vibration Visualisation
Analyses pixel-level movement throughout the recorded image and presents the resulting vibration data through visual image maps.
Multiple Regions of Interest
Select and analyse unlimited regions of interest while compiling frequency, displacement, velocity, acceleration, overall vibration and phase-angle data.
High Displacement Sensitivity
Detects peak-to-peak displacement as small as 0.1 mil, or 0.0025 mm, at 10 ft or 3 m with an end-to-end field of view.
Ultra-Wide Frequency Range
Using Warp Speed, VibVue supports frequency detection from above 1 Hz to 10,000 Hz without cropping the image resolution.
Frequency- and Time-Domain Display
Displays motion-magnified videos using frequency-filtered processing or in the time domain for examining transient events.
Portable, Offline Configuration
Operates as a portable, laptop-based camera and software system without requiring an internet connection during on-site use.
VibVue detects, measures, and compiles vibration data from an unlimited number of selected regions within a recorded scene. Available measurements in the VibVue software include frequency, displacement, velocity, acceleration, overall vibration and phase angle. This allow users to examine and compare movement across different machinery components and supporting structures.
The software presents pixel-level vibration data through visual image maps and generates motion-magnified videos for further analysis. Movement can be displayed using frequency-filtered processing to isolate selected frequencies or in the time domain to examine transient events.
VibVue enables engineers to investigate vibration problems that may be difficult to understand through visual inspection or individual measurement points alone. It provides a wider visual perspective of the operating system, allowing movement across multiple components to be examined within the same recorded scene.
Visualises how machinery components and connected structures move at selected frequencies, helping engineers investigate the source and behaviour of abnormal vibration.
Isolates movement at specific frequencies to reveal rocking, swaying, bending and other structural vibration modes associated with resonant conditions.
Displays relative movement at machine feet, baseplates, foundations and mounting points that may indicate soft foot, looseness or inadequate structural support.
Reveals movement across piping, small-bore connections, brackets and supporting structures, including vibration associated with structural flexibility or natural-frequency excitation.
Allows movement to be compared across couplings, machine casings, bases and connected components to identify areas experiencing different vibration behaviour.
Uses time-domain processing to examine short-duration or non-repeating movement that may not be adequately represented by steady-state frequency analysis.
VibVue can be applied across a wide range of rotating machinery and supporting structures to detect and visualise vibration patterns. It supports faster and more confident diagnosis across the following equipment types:
Pumps and Pumping Systems
Electric Motors and Generators
Fans and Blowers
Turbines and Industrial Engines
Compressors and Gearboxes
Couplings and Connected Machinery
Piping and Small-Bore Connections
Machine Bases, Foundations and Support Structures
| Specification | Capability |
|---|---|
| System Configuration | Combined high-speed camera hardware and video-analysis software solution. |
| Motion Magnification | Slows and magnifies subtle movement by more than 1,000×. |
| Vibration Visualisation | Displays pixel-level vibration data through visual image maps. |
| Measurement Capacity | Supports an unlimited number of regions of interest and measures frequency, displacement, velocity, acceleration, overall vibration and phase angle. |
| Displacement Detection Threshold | Detects peak-to-peak displacement as small as 0.1 mil or 0.0025 mm at a 10 ft or 3 m end-to-end field of view. |
| Frequency-Detection Range | Detects frequencies from above 1 Hz to 10,000 Hz using Warp Speed without cropping the image resolution. |
| Analysis and Display Modes | Displays motion-magnified video using frequency-filtered processing or in the time domain for transient events. |
| Field Configuration | Portable, laptop-based system that does not require an internet connection during on-site use. |
Discover in the following video how VibVue motion magnification technology are changing the way industrial organisations visualise and monitor vibration. Understand how VibVue are being utilised across various different industries, and how visual vibration insights can support reliability, safety and equipment performance.
VibVue is most applicable to industries that relies heavily on rotating machinery, piping systems, and vibration sensitive supporting structures. It enables reliability teams to see how machinery components and connected structures move during operation, providing additional evidence to investigate vibration sources, plan appropriate corrective action, and reduce the risk of unexpected equipment downtime. Below are some of the industries VibVue is applicable to:
Power Generation and Energy
Water and Wastewater
Oil, Gas and Refining
Manufacturing and Process Industries
Data Centres and Critical Facilities
Engineering, Research and Product Development
The VibVue motion magnification system is developed by Mechanical Solutions. Vibtech Genesis Pte Ltd is the official Singapore distributor for Mechanical Solutions.
Complete the contact form below to arrange for a product consultation from a Vibtech Genesis representative.
